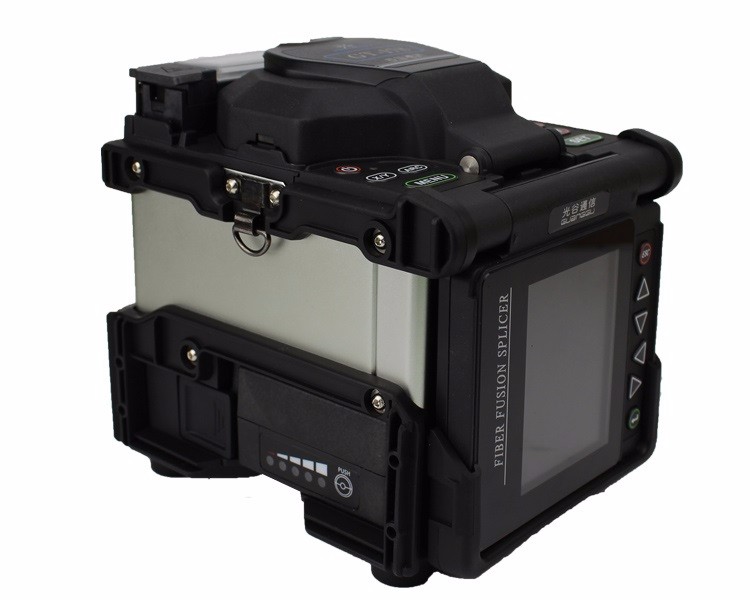

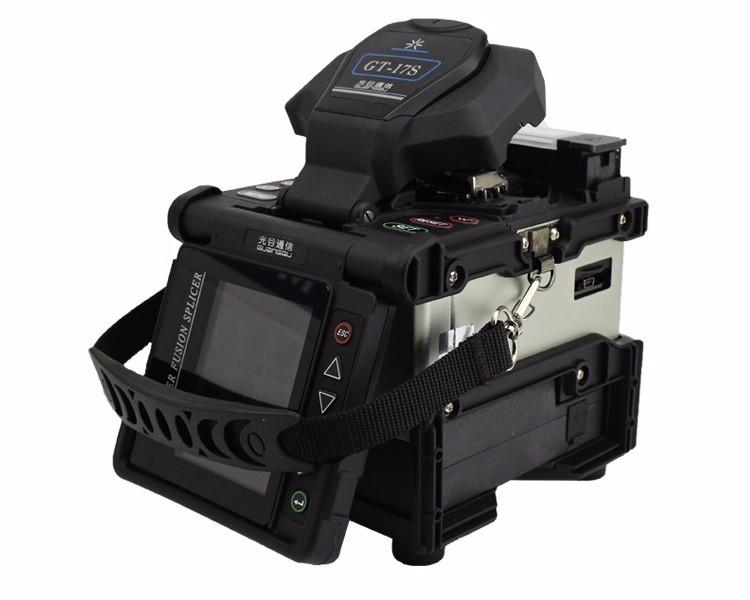

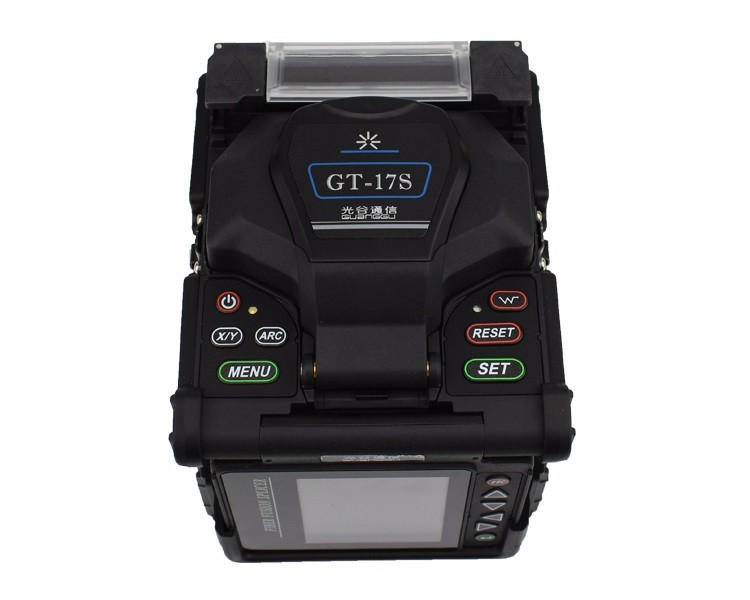

GT-17S FIBER OPTIC SPLICING MACHINE
Features:
1. Full digital processing technology, auto core to core alignment.
2. 9 seconds splicing, 28 seconds heating
3. 300X fiber magnification
4. Simultaneous X and Y view, or X/Y view
5. Multi alignment mode: cladding alignment, core alignment.
6. Storing 5000 splice results
7. Storing electrode discharge times

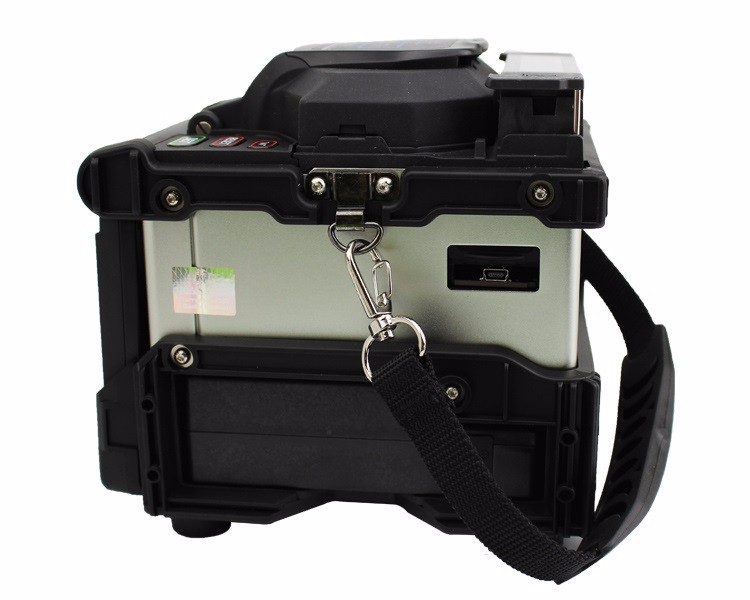

8. USB support data transfer
9. 3.7 inches high resolution color LCD screen
10. The new gloopy cover with nice appearance provide more dustproof & windproof
11. User-friendly operating system, smart menu design
12. Battery capacity indication and auto power off in low battery
13. 7800 mAh high-capacity Li-Battery
Technical Specifications:
|
Applicable Fibers |
SM, MM, DS, NZDS,BIF&UBIF(G.657) |
|
Average Splice Loss |
0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) |
|
Return Loss |
≥60dB |
|
Operating mode |
Full automatic , semi-automatic |
|
Average splicing time |
10seconds |
|
Average heating time |
16seconds |
|
Alignment mode |
cladding alignment, core alignment |
|
Applicable Fiber Diameter |
Cladding 80~150μm, coating 100~1000μm |
|
Fiber cleaved length |
8~16mm |
|
Magnification times |
X and Y simultaneously 310X; X or Y respectively 150X |
|
Splicing program |
100 sets (Default 9 sets) |
|
Heating program |
50 sets (Default 8 sets) |
|
Store capacity |
5000 results |
|
LCD Display |
3.7 inch TFT LCD, 640x480 resolution |
|
Tension Test |
2.0N(200gf) (Standard) |
|
Applicable protection sleeve |
60mm, 40mm, 20mm, and a series of micro sleeves |
|
Interface |
Standard USB |
|
Electrode life |
2500 discharges |
|
Battery ability |
Average 250 times splice and heat, charging time: 3-4 hours |
|
Power Supply |
AC/DC adapter: Input: AC100~240V, 50/60Hz, Output: DC13.5V/5.0A Lithium battery 11.1V, 7800 mAH. |
|
Environmental Conditions |
Operation temperature -10~+50, Humidity 0~95% RH, Altitude 0~5000m |
|

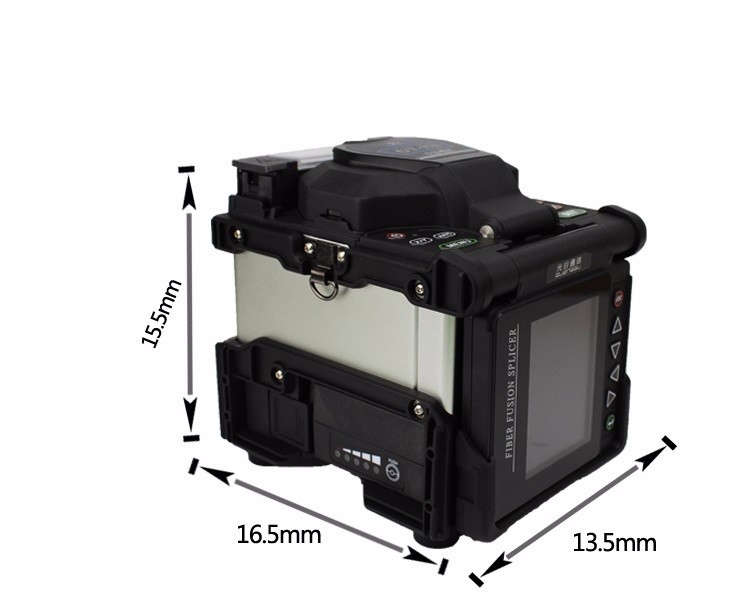

Dimensions |
L135mm*W160mm*H150mm |
|
Weight |
2.2kg(without battery) ,2.6kg(with battery) |
